Cable And Pipe Locator

Cable And Pipe Locator

SKU: BKM RD7000 Category:

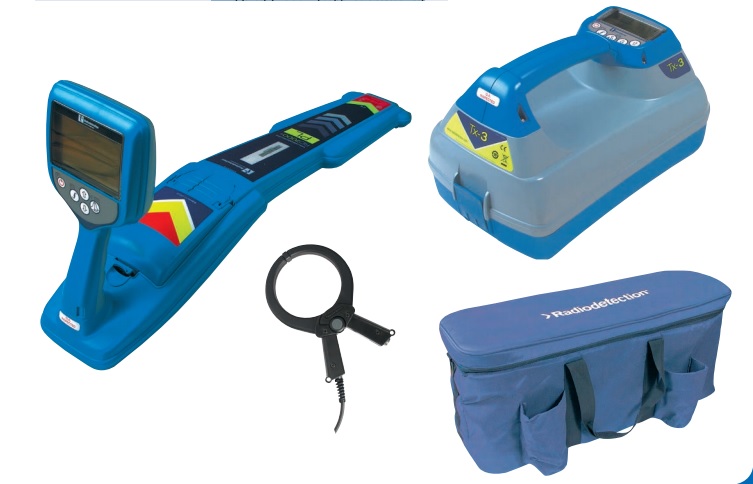

RD7000 Cable And Pipe Locator With Compass The locator and transmitter both feature large, high contrast, backlit LCD screens that provide the user with clear information in any light conditions. The intuitive and responsive user interface has easily identifiable icons that are consistent across the locator and transmitter range, ensuring straightforward operation.

Compass
Visually follow the target cable or pipe with the dynamic line indicator. Allows the operator to quickly and easily follow the target line by visually indicating the relative orientation of the target cable and the locator.



eCAL™
Validates your RD7000+ against its original factory calibration and allows printing of validation certificates. Unique to radio detection precision locators, eCAL allows users to validate the original factory calibration of the RD7000+ locator through a PC*.

Technical Specifications for locator and transmitter Sensitivity 6E-15 Tesla, 5μA at 1 meter (33kHz) Dynamic range 140dB rms /√¹Hz Selectivity 120dB/Hz Depth accuracy Line: ± 5% tolerance from 0.1m (4”) to 3m (10ft) Sonde: ± 5% tolerance from 0.1m (4”) to 7m (23ft) Maximum depth* Line 6m (20ft), Sonde 15m (50ft) Fault finding (FF) Diagnose cable sheath faults from short circuit to 2MΩ using the A-frame Batteries Locator: 2 x D-cells (LR20) or rechargeable battery pack† Transmitter: 8 x D-cells (LR20) or rechargeable battery pack† Warranty 36 Months upon registration Dynamic overload protection 30dB (automatic) Compliance FCC, RSS 310 RoHS, WEEE, CE Weight Transmitter: 2.84kg (6lbs) (including batteries) 4.2kg (9lbs) (including supplied accessories) Locator: 1.87kg (4lbs) (including batteries) Environmental protection: IP54 Operating temperature range: -20°C to +50°C (4°F to 122°F)
